Few Question on modding softkey


  • Please log in to reply
14 replies to this topic

#1 OFFLINE   justjes_02

justjes_02
  • Members
  • Pip
  • Padawan

  • 33 posts
  • Twitter:pchyjess

Posted 06 June 2012 - 06:10 PM

Hi good morning, im here again to ask if modding soft key is the same as modding right soft key, my phone is K800i ..

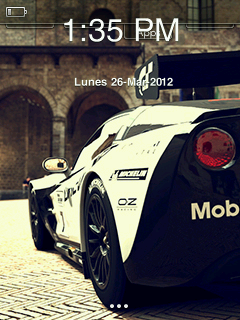

and i just want my softkey looks like this?
Posted Image

do i have to patch it?  :unsure:

#2 OFFLINE   Boysie

Boysie
  • Super Moderators
  • Mrs Miggins

  • 37,216 posts
  • Gender:Can't decide
  • Location:Between a rock and a hard place
  • Mobile:X10 - K800
  • Tutorials Submitted:One or two

Posted 06 June 2012 - 06:25 PM

Center softkey hook not possible on your phone.

Those 3 dots could be achieved by other methods though. Removal of the other two could be done by patch/elf or with hook.itm.

Personal messages that have no need to be private will not be answered. We have a forum for asking questions so please use it.


#3 OFFLINE   justjes_02

justjes_02
  • Members
  • Pip
  • Padawan

  • 33 posts
  • Twitter:pchyjess

Posted 07 June 2012 - 03:09 AM

Sir can you link the elf that i should use to remove my left & right key, then also how can i achieve that said center soft key? And also sir, how can i moved the battery bar or the signal bar like in the screenshot above? :confused:

#4 OFFLINE   Boysie

Boysie
  • Super Moderators
  • Mrs Miggins

  • 37,216 posts
  • Gender:Can't decide
  • Location:Between a rock and a hard place
  • Mobile:X10 - K800
  • Tutorials Submitted:One or two

Posted 07 June 2012 - 06:24 AM

I use Advsoftkeys elf (requires patch as well). For those three dots the only way I can see is if you draw them on the wallpaper and as for moving the statusrow items you can edit your layout.xml or use "StatusIndication/Ability to move items standby" patch.

BTW Thread moved to DB2020 graphical modding section.

Personal messages that have no need to be private will not be answered. We have a forum for asking questions so please use it.


#5 OFFLINE   justjes_02

justjes_02
  • Members
  • Pip
  • Padawan

  • 33 posts
  • Twitter:pchyjess

Posted 08 June 2012 - 03:03 AM

Ok sir, i will search for Advsoftkeys elf and also StatusIndication patch. I'll ask some questions again if i dont get the right process of patching it.Thanks

#6 OFFLINE   Boysie

Boysie
  • Super Moderators
  • Mrs Miggins

  • 37,216 posts
  • Gender:Can't decide
  • Location:Between a rock and a hard place
  • Mobile:X10 - K800
  • Tutorials Submitted:One or two

Posted 08 June 2012 - 08:11 AM

Here is Advsoftkeys elf...
http://www.perk11.in...AdvSoftkeys.elf

Here is Softedit elf...
http://www.perk11.in...xe/SoftEdit.elf

Here is the required patch...
;K800 SW-R8BF003
;Advanced softkeys handling
;Add-on to AdvSoftkeys elf
;(c) UltraShot
;(p) michlantecuhtli
45480620: 0DFA4745 01BDD145
45D1BD00: 00000000000000000000000000000000 B0B5051C104C1248A047002803D10D4C
45D1BD10: 00000000000000000000000000000000 281CA047B0BD071C281CFC69A0470028
45D1BD20: 00000000000000000000000000000000 F5D0281CB0BD00B5002806D000684068
45D1BD30: 00000000000000000000000000000000 08A1064B9847002801D0002000BD0120
45D1BD40: 00000000000000000000000000000000 00BDFFFF0DFA474595CE3A4541A66744
45D1BD50: 00000000000000000000000000 27BDD145536F66746B65797300

Here is Statusindication patch...
Attached File  Ability_to_move_items_standby_EN_mod_by_farid.rar   24.38K   12 downloads

Personal messages that have no need to be private will not be answered. We have a forum for asking questions so please use it.


#7 OFFLINE   justjes_02

justjes_02
  • Members
  • Pip
  • Padawan

  • 33 posts
  • Twitter:pchyjess

Posted 11 June 2012 - 04:01 AM

Hi sir, i can't seem to understand the softkey string, etc .  :cry: i already patch them, but i can't patch the Status Indication patch, because im getting a mismatch. :confused:

#8 OFFLINE   Boysie

Boysie
  • Super Moderators
  • Mrs Miggins

  • 37,216 posts
  • Gender:Can't decide
  • Location:Between a rock and a hard place
  • Mobile:X10 - K800
  • Tutorials Submitted:One or two

Posted 11 June 2012 - 05:37 AM

Open "Ability to move items standby vkp" in notepad and comment (add ; to beginning of line) to this line...

45480620: 0DFA4745 E9CFD645
If you require my Advsoftkeys.cfg file then I shall upload it.

Personal messages that have no need to be private will not be answered. We have a forum for asking questions so please use it.


#9 OFFLINE   justjes_02

justjes_02
  • Members
  • Pip
  • Padawan

  • 33 posts
  • Twitter:pchyjess

Posted 11 June 2012 - 06:43 AM

View PostBoysie, on 11 June 2012 - 05:37 AM, said:

Open "Ability to move items standby vkp" in notepad and comment (add ; to beginning of line) to this line...

45480620: 0DFA4745 E9CFD645
If you require my Advsoftkeys.cfg file then I shall upload it.
ok so it will be
;45480620: 0DFA4745 E9CFD645
:unsure:

Ok sir can you please upload it? then where i should put it :rolleyes:

#10 OFFLINE   Boysie

Boysie
  • Super Moderators
  • Mrs Miggins

  • 37,216 posts
  • Gender:Can't decide
  • Location:Between a rock and a hard place
  • Mobile:X10 - K800
  • Tutorials Submitted:One or two

Posted 11 June 2012 - 06:48 AM

View Postjustjes_02, on 11 June 2012 - 06:43 AM, said:

ok so it will be
;45480620: 0DFA4745 E9CFD645
:unsure:

Correct.

Put to card/other/zbin/config and remove rar extension...

Attached Files


Personal messages that have no need to be private will not be answered. We have a forum for asking questions so please use it.


#11 OFFLINE   justjes_02

justjes_02
  • Members
  • Pip
  • Padawan

  • 33 posts
  • Twitter:pchyjess

Posted 12 June 2012 - 02:56 AM

Ok Thanks sir, i'll try it after my work. :good:

Sir, i got it working the standystatus patch, but i got this screen..
Posted Image


:unsure: how can i remove that text, and also how can i configure it, like how can i move the signal bar.. :rolleyes:

#12 OFFLINE   Boysie

Boysie
  • Super Moderators
  • Mrs Miggins

  • 37,216 posts
  • Gender:Can't decide
  • Location:Between a rock and a hard place
  • Mobile:X10 - K800
  • Tutorials Submitted:One or two

Posted 12 June 2012 - 05:26 AM

Press 000000 on standby. Press * to Select item, 2 4 6 8 moves elements, # edits current selected item and 5 saves.

Personal messages that have no need to be private will not be answered. We have a forum for asking questions so please use it.


#13 OFFLINE   justjes_02

justjes_02
  • Members
  • Pip
  • Padawan

  • 33 posts
  • Twitter:pchyjess

Posted 12 June 2012 - 07:33 AM

Alright sir, i moved the signal bar. :good:
Sir, about the status row background can i make it transparent?
BTW do you have a tutorial to change right soft key using right hook? :unsure:

#14 OFFLINE   Boysie

Boysie
  • Super Moderators
  • Mrs Miggins

  • 37,216 posts
  • Gender:Can't decide
  • Location:Between a rock and a hard place
  • Mobile:X10 - K800
  • Tutorials Submitted:One or two

Posted 12 June 2012 - 07:39 AM

A custom image can be set for statusrow background but this only draws over the default set by the theme. If you want to remove it completely then edit the theme you're using.

There is a tutorial in the tutorials and guide section but I've never found the need to use hooks for softkeys when I can use patches. The only hook I use is to run Operamini with operator/internet key.

Personal messages that have no need to be private will not be answered. We have a forum for asking questions so please use it.


#15 OFFLINE   justjes_02

justjes_02
  • Members
  • Pip
  • Padawan

  • 33 posts
  • Twitter:pchyjess

Posted 12 June 2012 - 07:48 AM

Ok sir, now i understand.  :D  Thanks much for answering and guiding me. :byebye:
