Guide to Flashing Your K750,D750 Cd 36 to W800., Tutorial to flashing your k750,d750 Options

[eyitzvic]

Here is a little guide to flash your favorite phone ever(k750,d750) to w800. The pictures provide most of the instructions, but ill make it a little simpler. Included in this post, I'll have the attached files of the main and fs files.

Thx to cavveman for images.

Here are the Main and FS Files
Main And FS
^^(good ol speedyshare)


1. So, yeah get Far manager. here, and this file that goes with it. Here It goes into C:\Program Files\Far\Plugins

When you open Far manager. Press alt + F1 and you'll get that screen. Press SEFP
2.


Make sure everything looks like the picture. All those highlighted stuff. Turn off your phone before you do that. And do what it tells you to do when you press enter the matrix
3.

After that it will load lots of stuff, Press Flash
4.


So highlight your main file. By either holding shift and moving the arrow keys. (highlighted means its yellow.) or right clicking it. And press f5.
5.


When you press f5 you should get this screen..So from there just press copy..make sure you dont check anything.
6.


After than another menu should pop up. Make sure the numbers on your menu are exactly alike to the one in the picture. And check BABE FLASH SSW. Just follow the image. For the people who cant find the number.. its
W800 - MAIN Firmware - 44020000 - 013E0000
So after all that just press flash and it should take a while. Then it should finish
7.

When it finishes it shows that
8.

So basicly your done with the main so far. HALF WAY THERE!!


So you need the fs file now..Included below in the attached file place

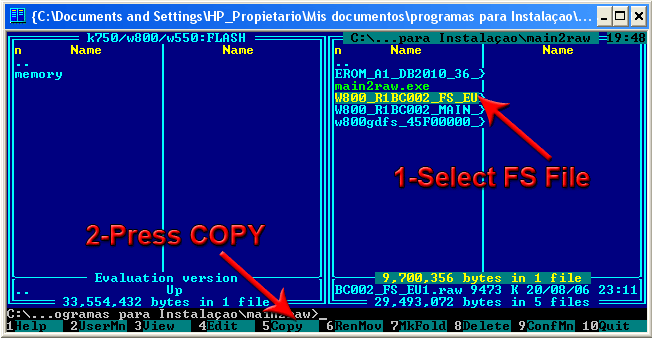

1.This time choose the fs file and copy



2.Now back to the number thing again. Check the Babe Flash ssw again. and copy the numbers
W800 - FS Language - 45400000 - 00B00000



3. Yeah.. Wait a while and its done.

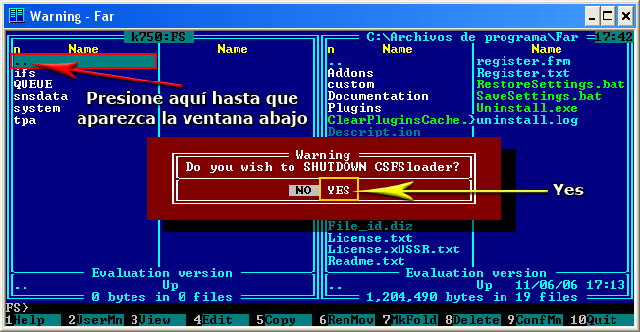

Unplug the phone, and quit far by pushing f10. Then reload it again, your gonna have to finalize it.

When you go through the SEFP thing where you plug in your phone. Go to FS instead of flash this time. And go to /tpa/preset/custom/.


EDIT: In the finalizing files theres a customize.xml document. You can edit the file by right clicking it and clicking edit. You edit for the CDA Number for the language you want. I already have the most common languages on there. So I assume you won't need to.

Go to the folder where you extracted the Complete.Rar file. And copy all the files.
4.


5. YOUR DONE!!!!!!!!!!!!! Well you have to quit. Double click The two dots .. Or it wont save.. then quit far




Okay guys i hope you enjoy this. I had a hard time learning and searching for the files to flash mine lol.
Below are the attached files, and some more i'll add in

These two below..The complete rar is the file you need to use to finalize your flashing.The other is just some patches i threw in. The main and FS files are linked since the attachment max size is 2mb.


 complete.rar ( 11.02K ) Number of downloads: 466

 w800_R1BC002_working_patches.rar ( 4.39K ) Number of downloads: 353


This post has been edited by eyitzvic: 2007-04-04 21:02

[Stonos]

Nice tutorial, but why flash with Far Manager, while you can use XS++ or GFlash?

[quawiar]

Hi!

This is a quite good guide! Thank you!

But I have a question: I'm pretty new here and pretty new for those firmware things.

If I following the steps U wrote I get my k750-w800 hybryd phone, right... but can I turn it back to a simple k750 the way it was?

Is it enough to (backup) copy the specified "flash areas" in Far manager -> SEFP -> FLASH ->memory, and when I want to turn back my phone, I'll just re-write those memory areas with files I've alredy copyed?

I hop U understand what I mean.

Thanx!

[eyitzvic]

For Quawiar

Hi!

This is a quite good guide! smile.gif Thank you!

But I have a question: I'm pretty new here and pretty new for those firmware things.

If I following the steps U wrote I get my k750-w800 hybryd phone, right... but can I turn it back to a simple k750 the way it was?

Is it enough to (backup) copy the specified "flash areas" in Far manager -> SEFP -> FLASH ->memory, and when I want to turn back my phone, I'll just re-write those memory areas with files I've alredy copyed?

I hop U understand what I mean.

Thanx!

naw you dont need to do all that to revert. So you have a k750 right? If you do, and you use this guide, just use SEUS and it will revert back. At least thats what a thread in this forum told me. Or y o ucould always use this tutorial to flash it back, just use k750 files instead



For Stonos

Nice tutorial, but why flash with Far Manager, while you can use XS++ or GFlash?

because some people do not now how to get the credits, and for the people who dont know how to flash and then finalize with far. Just an easier guide i guess.

This post has been edited by eyitzvic: 2007-04-02 22:35

[darkheart0817]

please help...
why do i always get this error and my FS and FLASH is empty..please reply

This post has been edited by darkheart0817: 2007-04-03 01:16

[eyitzvic]

im not really sure what the problem is..im sure you could find the answer in this forum, but have you tested your phone capilbility with far?

This post has been edited by eyitzvic: 2007-04-04 01:49

[Stonos]

please help...
why do i always get this error and my FS and FLASH is empty..please reply

This tutorial will work only for CID36 phones, not for CID49.
For CID49, you have to make some changes.

[bord4kop]

Nice tut!

Only, DL this;

..

These two below..The complete rar is the file you need to use to finalize your flashing.The other is just some patches i threw in. The main and FS files are linked since the attachment max size is 2mb.

 complete.rar ( 11.02K ) Number of downloads: 466

..

Dont work

[eyitzvic]

it doesnt?..it should work perfectly..thats how i flash mine..lets see..

edit: it should work perfectly.

This post has been edited by eyitzvic: 2007-04-03 23:16

[SpiderX1016]

Give credit to Topsony for the images next time
http://www.topsony.com/forum/showthread.php?t=22

[eyitzvic]

it was top sony? i from someone else on another forum

This post has been edited by eyitzvic: 2007-04-04 07:21

[loucostanza]

hi all, i new to this forum and also this subjects (flashing, patching, etc).

@eyitzvic: i've followed your tutorial. but i got this error message after step 3
(i clicked [enter the matrix] --> proccesed --> got error message)
look like this:



according to that message, seems i need to install EPIUSB.SYS file.
does anybody knows where can i get that file? and also where/what directory should i put that file?
or maybe someone has another solutions?

Some informations:
my phone firmware right now is R1A044. The code on the backside (after removed the cell) is 05W22. Camera SW version is 3.8
Is my phone CID36?

This post has been edited by loucostanza: 2007-04-04 08:48

[M]

DUDE YOU ARE THE BOMB! God really blessed you to place this here...i did my k750 cid36 brown and its now a w800 hehe tanx a lot...although i caught my.....royal to get the firmware...i had to source it elsewhere...you really helped out a lot...although i did saw a tutorial similar to this somewhere before

[eyitzvic]

hi all, i new to this forum and also this subjects (flashing, patching, etc).

@eyitzvic: i've followed your tutorial. but i got this error message after step 3
(i clicked [enter the matrix] --> proccesed --> got error message)
look like this:


Reduced 85%
Attached Image
650 x 331 (70.94k)

according to that message, seems i need to install EPIUSB.SYS file.
does anybody knows where can i get that file? and also where/what directory should i put that file?
or maybe someone has another solutions?

Some informations:
my phone firmware right now is R1A044. The code on the backside (after removed the cell) is 05W22. Camera SW version is 3.8
Is my phone CID36?

hmm did you follow the instruction of what to have highlighted? It should be DCU-60,921600, and k750_w800_cd36, or your phone may not be CD36.

You can check with this K750 flasher 13.7. You can get the file here. Click Read CID/Cable and it'll tell you the CID of your phone.

 k750flasher_13.7.zip ( 890.23K ) Number of downloads: 172

[eyitzvic]

was wondering if anyone has files to change firmware without seus

[quawiar]

Hi!

The tutor is working, now I have a hybrid

But have 2 problems:

- I need a hungarian version (maybe W800_R1BC002_FS_EMEA4 ?). Have u got this or can u give me an idea where to find it FOR FREE? (I know I can get it for credit from davinci etc.)

- SEUS doesn't revert my phone back, I choose k750i and it says the sw is the latest version, don't need to refresh...

EDIT
I've done it, find EMEA4 and upgraded... now I have a full Hungarian K750-W800 Hybrid
Thank you

Ps. Anyway the SEUS problem is still frustrating me....

This post has been edited by quawiar: 2007-04-05 12:41

[prase]

hi all, i new to this forum and also this subjects (flashing, patching, etc).

@eyitzvic: i've followed your tutorial. but i got this error message after step 3
(i clicked [enter the matrix] --> proccesed --> got error message)
look like this:



according to that message, seems i need to install EPIUSB.SYS file.
does anybody knows where can i get that file? and also where/what directory should i put that file?
or maybe someone has another solutions?

Some informations:
my phone firmware right now is R1A044. The code on the backside (after removed the cell) is 05W22. Camera SW version is 3.8
Is my phone CID36?

did you install the USB Flash driver? this procedure can't be done without it! i'm attaching it to this post.

Attached File(s)

 driver.rar ( 8.68K ) Number of downloads: 59



[SpiderX1016]

XS++ way is a lot easier imo.

[eyitzvic]

XS++ way is a lot easier imo.

Well, it's for the people who don't know how to use that program. Like myself of course.

[SpiderX1016]

http://www.topsony.com/forum/showthread.php?t=49
